Getting started with service onboarding pipeline (using Custom Stage)

This tutorial is designed to help a platform engineer to get started with Harness IDP. We will create a basic service onboarding pipeline that uses a software Workflow and provisions a Next.js application for a developer. After you create the software Workflow, developers can choose the Workflow on the Create page and enter details such as a name for the application and the path to their Git repository. The service onboarding pipeline creates a hello world repository for storing code.

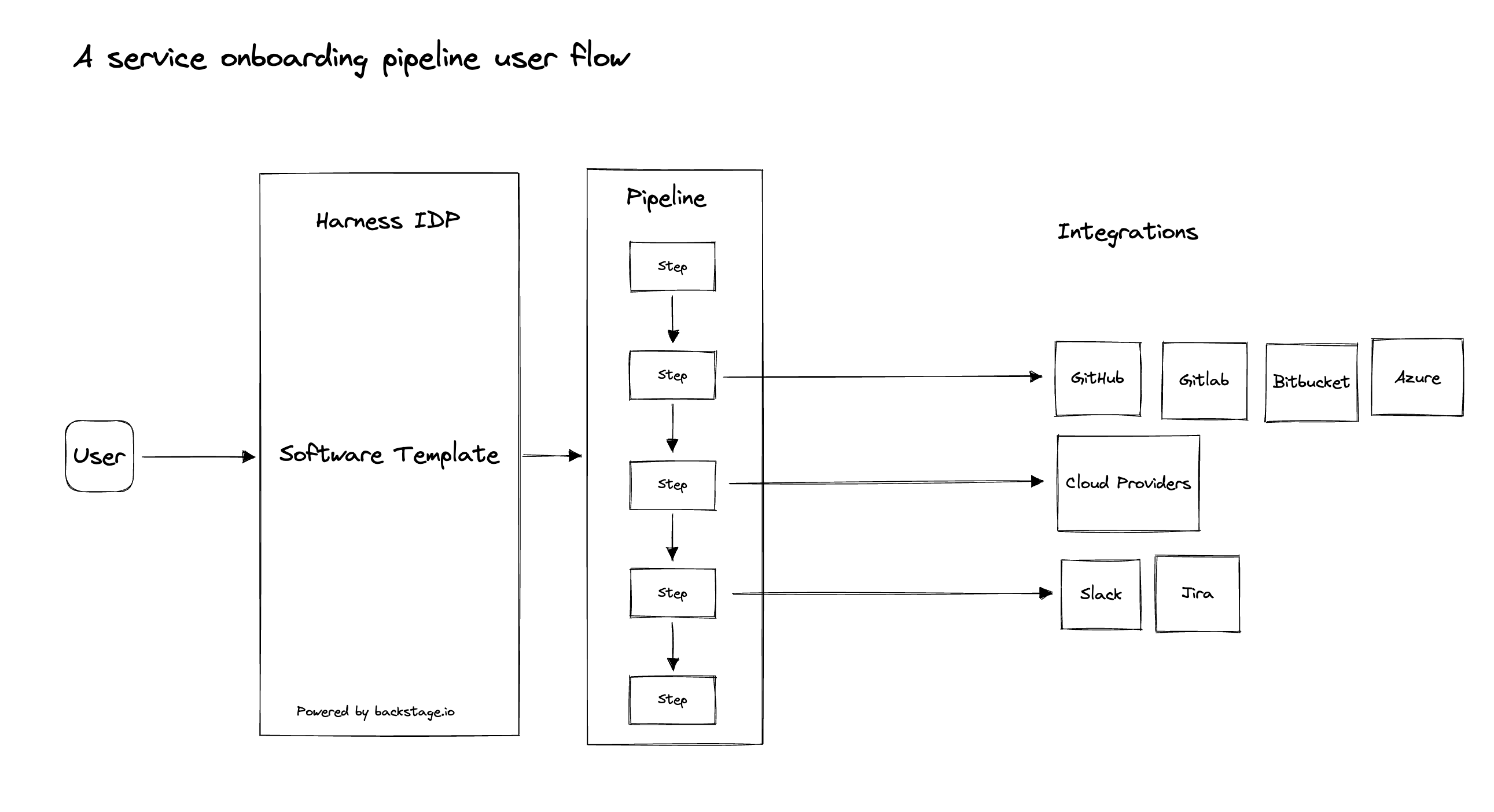

Your users (developers) must perform a sequence of tasks to create the application. First, they interact with a software Workflow. A software Workflow is a form that collects a user's requirements. After a user submits the form, IDP executes a Harness pipeline that onboard the new service. Usually the pipeline fetches a hello-world skeleton code, creates a new repository, and interacts with third-party providers such as cloud providers, Jira, and Slack.

Prerequisites​

Before you begin this tutorial, make sure that you fulfil the following requirements:

  • Enable Harness IDP for your account.
  • Obtain a CI or CD license if you do not have one. This is a temporary requirement.

Create a pipeline​

Begin by creating a pipeline for onboarding the service.

Create a Build or Custom stage​

To create a Build or Custom stage, perform the following steps:

  1. In the sidebar of the Harness application, select Projects, and then select a project.

You can also create a new project for the service onboarding pipelines. Eventually, all the users in your account should have permissions to execute the pipelines in this project. For information about creating a project, go to Create organizations and projects.

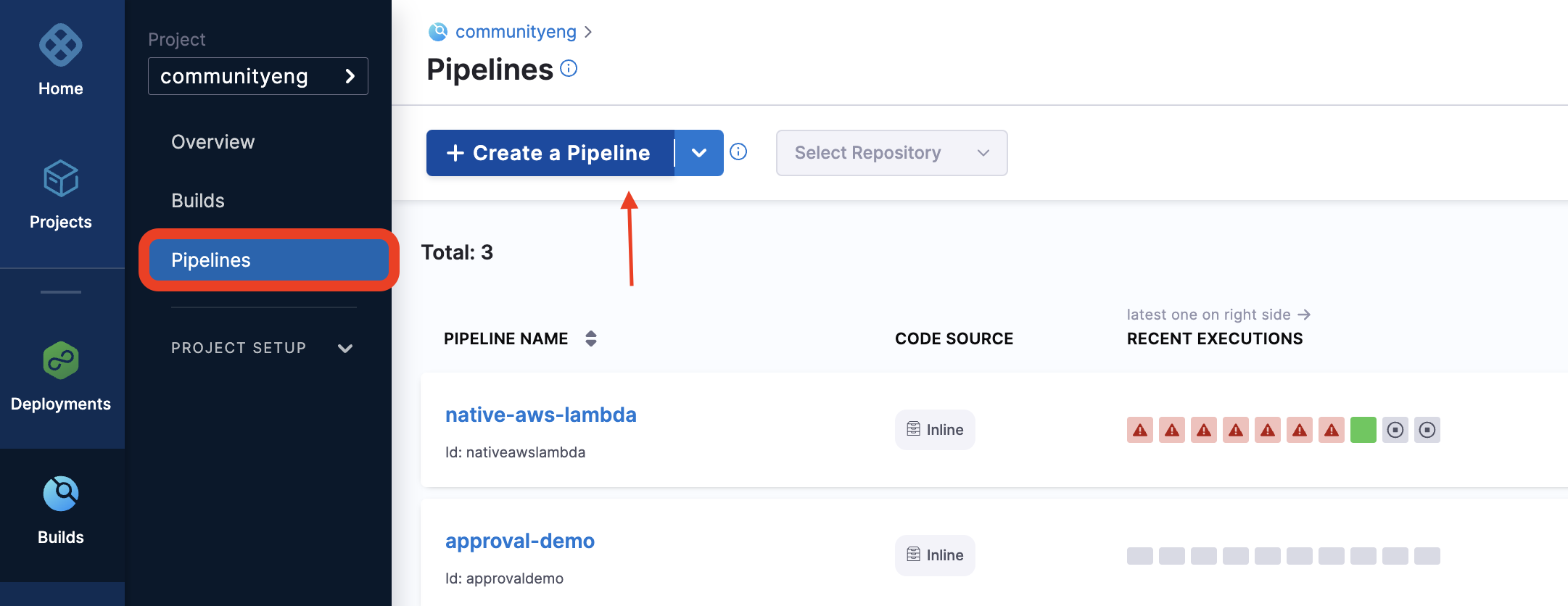

  1. Select Pipelines, and then select Create a Pipeline.

  2. In Pipeline Studio, select Add Stage.

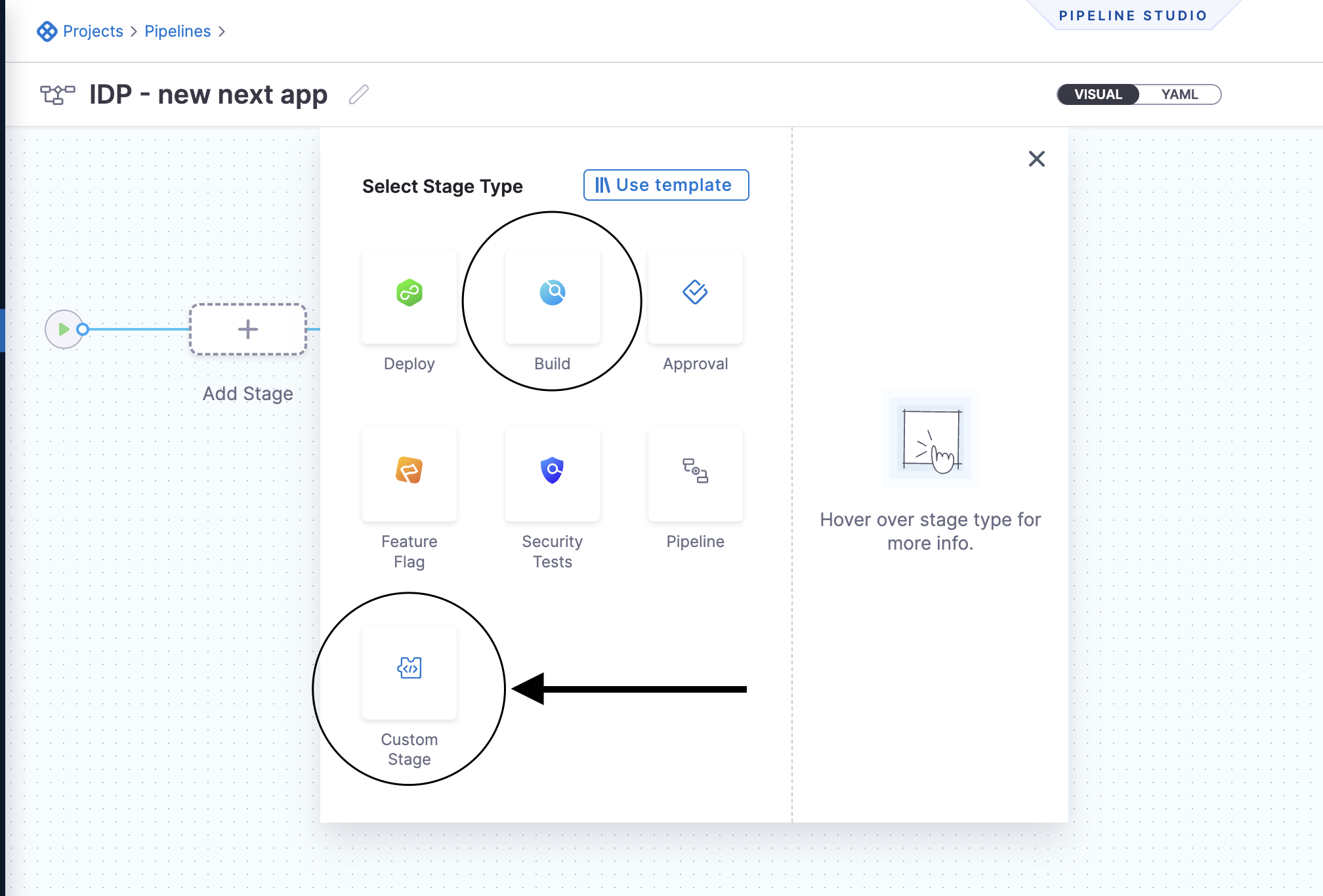

  1. In Select Stage Type, select Custom Stage. (If you have a Harness CI license, you could also use the Build stage type. However, for this tutorial, we recommend that you use the Custom Stage type.)

  1. In Stage Name, enter a name for the stage, and then click Set Up Stage.

  2. Select Add step, and then, in the menu that appears, select Add Step.

A sidebar with available steps is displayed.

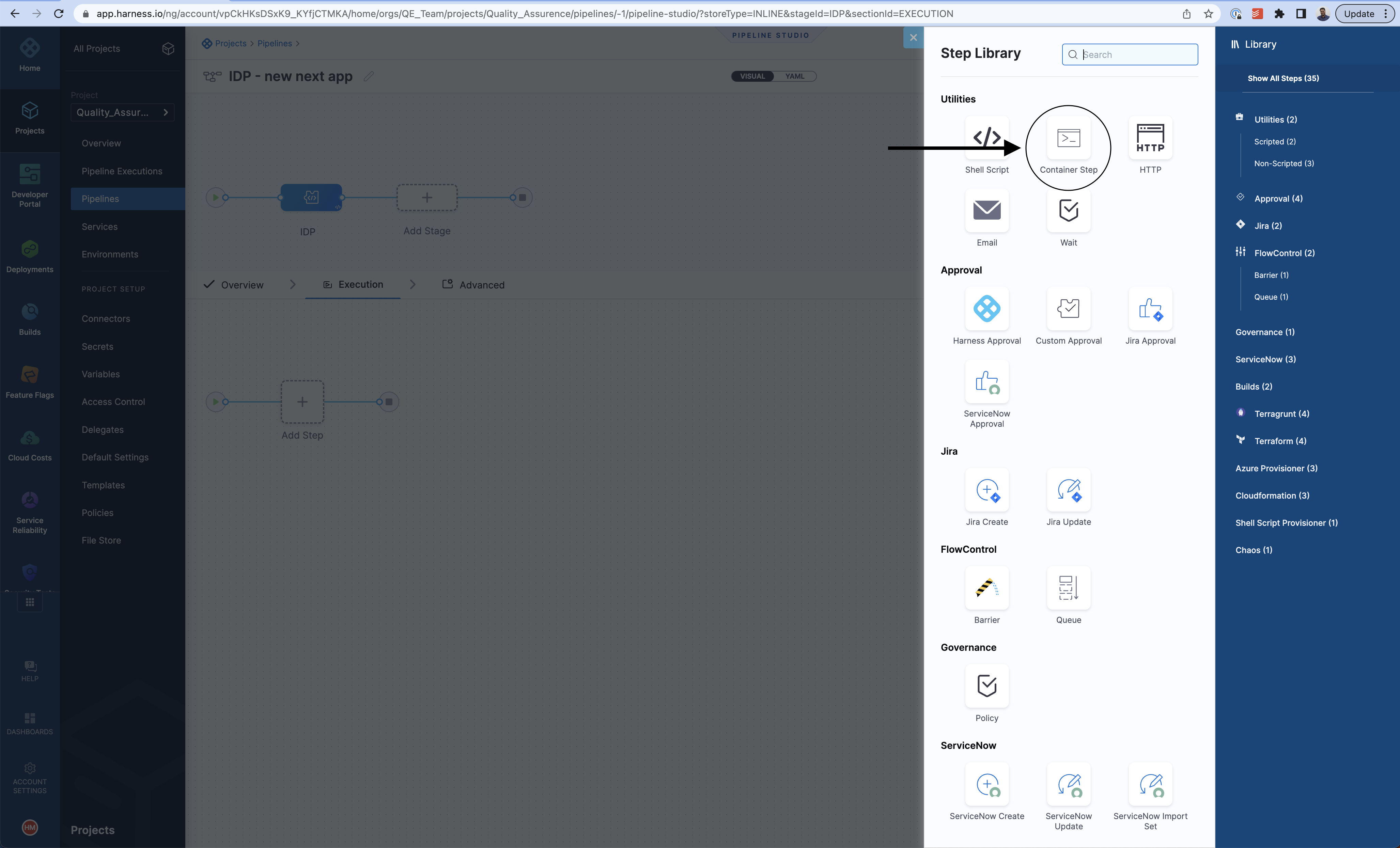

  1. Select Container Step to run a Python CLI called cookiecutter. We need a publicly available Python image for this purpose. You can use Container Step for any such project generators (for example, yeoman).
note

In the CI or Build stage type, container step is named Run, and it has the same functionality.

  1. Configure the step as follows:

    1. Enter a name for the step. For example, name it Create React app.

    2. You can enter 10m (10 minutes) in the Timeout field.

    3. In Container Registry, create or choose an anonymous Docker connector that connects to DockerHub (https://registry.hub.docker.com/v2/).

    4. In Image, enter python.

    Before we write the command, we must make an infrastructure choice, which means that we specify where the pipeline executes. You can execute the pipeline on your own infrastructure or on the Harness platform. If you have an existing delegate set up for deployments, you can use the associated connector and specify its Kubernetes namespace. If you want to use the Harness platform, you have to use the CI or Build stage type instead of the Custom stage type and choose the Harness platform as your infrastructure.

    note

    Depending upon our operation, we might have to adjust the memory limit of the container. If required, you can change Limit Memory from 500Mi to 4000Mi.

Cookiecutter Scripts Based on your SCM​

  1. Paste the following cookiecutter-based script into Command.

    The script performs the following tasks:

    1. Generates a basic Next.js app.

    2. Creates a repository with the contents. The sample code used in the command is available here, which essentially is a cookiecutter project. You can choose from available cookiecutter projects or create your own project from scratch.

    # Testing path
    pwd

    # Pre-cleanup in case pipeline fails

    rm -rf idp-samples/
    rm -rf "<+pipeline.variables.project_name>"

    # Clone skeleton
    git clone https://github.com/harness-community/idp-samples

    # Generate code to be pushed
    pip install cookiecutter
    cookiecutter idp-samples/idp-pipelines/cookiecutter-react-app/ app_name="<+pipeline.variables.project_name>" --no-input

    # Add catalog-info.yaml content
     echo "apiVersion: backstage.io/v1alpha1
     kind: Component
     metadata:
       name: <+pipeline.variables.project_name>
       description: This is a nextjs app.
       annotations:
         backstage.io/techdocs-ref: dir:.
     spec:
       type: documentation
       lifecycle: experimental" > catalog-info.yaml


    # Create repository
    curl -L -i -X POST -H "Accept: application/vnd.github+json" -H "Authorization: Bearer <+pipeline.variables.github_token>" https://api.github.com/orgs/<+pipeline.variables.github_org>/repos -d "{\"name\":\"<+pipeline.variables.github_repo>\",\"description\":\"<+pipeline.variables.project_name> - A Next.js app\",\"private\":false}"

    # Push the code
    cd <+pipeline.variables.project_name>/
    git init -b main
    git config --global user.email "support@harness.io"
    git config --global user.name "Harness Support"
    git add .
    git commit -m "Project init and Added catalog-info.yaml"
    git remote add origin https://github.com/<+pipeline.variables.github_org>/<+pipeline.variables.github_repo>.git
    git push https://<+pipeline.variables.github_token>@github.com/<+pipeline.variables.github_org>/<+pipeline.variables.github_repo>.git

    # Add catalog-info.yaml location to catalog
     curl --location 'https://idp.harness.io/<+account.identifier>/idp/api/catalog/locations' \
     --header 'x-api-key: <HARNESS_TOKEN>' \
     --data-raw '{"type":"url","target":"https://github.com/<+pipeline.variables.github_org>/<+pipeline.variables.github_repo>/blob/main/catalog-info.yaml"}'
info

In the above script you need to add the Personal Access Token to make the API call to register your catalog,

  1. Click Apply Changes.

Manage variables in the pipeline​

The script uses several pipeline variables. The variables are as follows:

  • <+pipeline.variables.project_name>
  • <+pipeline.variables.github_username>
  • <+pipeline.variables.github_token>
  • <+pipeline.variables.github_org>
  • <+pipeline.variables.github_repo>

Except for the secrets all the variables should have a runtime input type and the variable name should match with the parameter name used in the Workflow as the values would be pre-populated from the values entered as input in the below IDP Workflow.

For eg: <+pipeline.variables.project_name> variable is pre-populated by project_name: ${{ parameters.project_name }} under input set: in the below given Workflow.

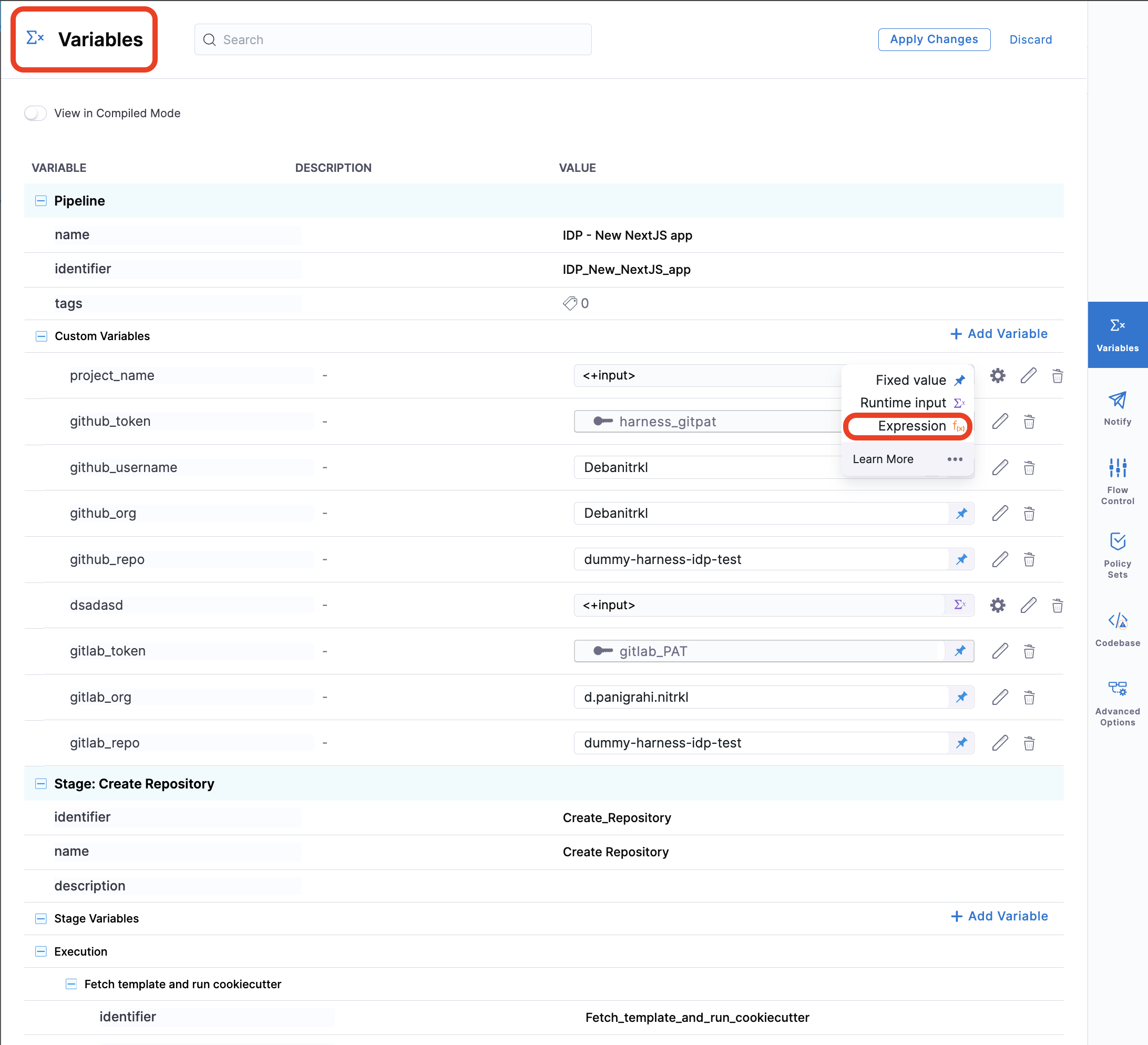

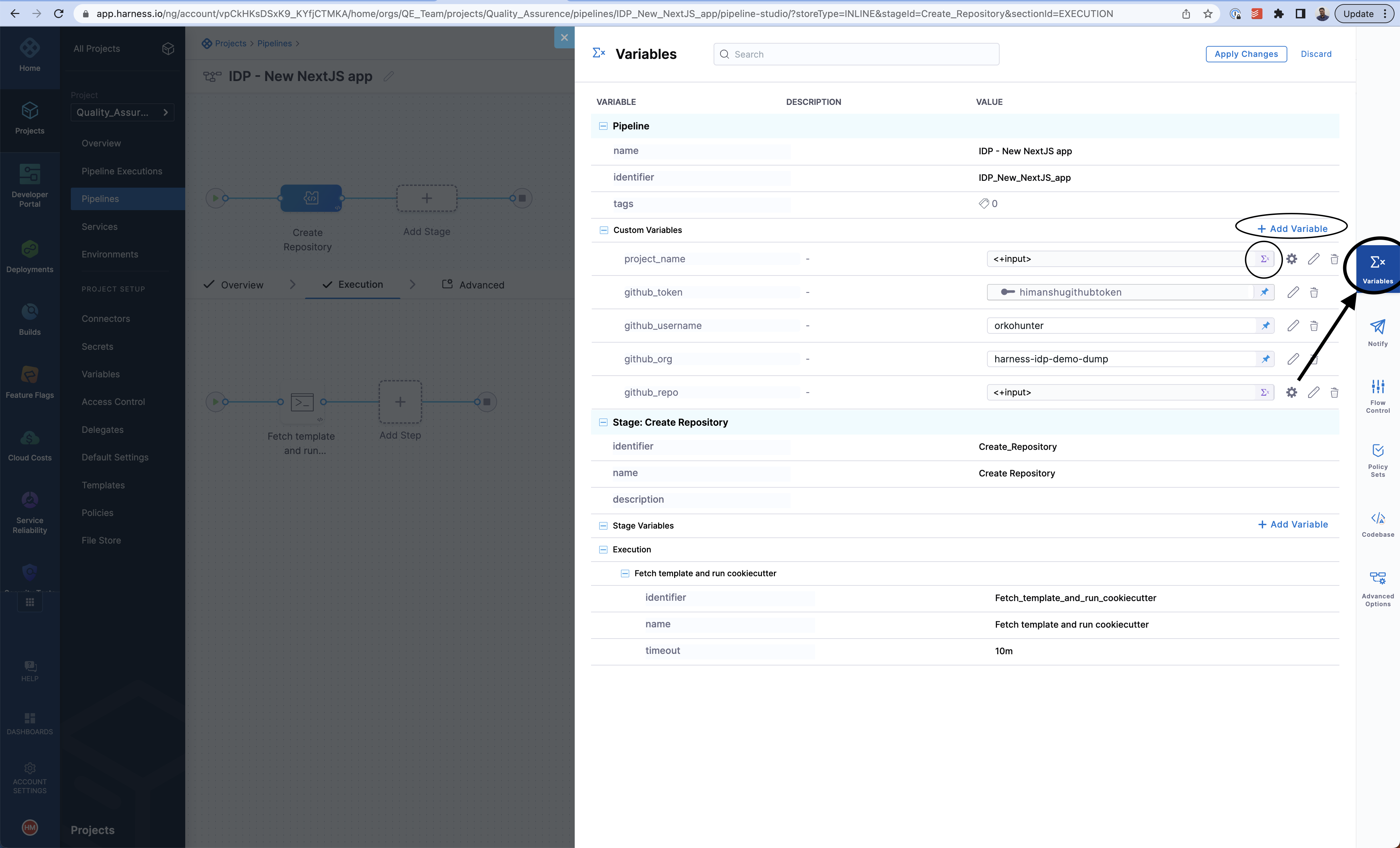

You can use the Variables button on the floating sidebar on the right-hand side to open the Variables page for the pipeline.

You can create any number of pipeline variables and decide their value type. Some variables, such as a GitHub token, a username, and organization, can have a fixed value. The token used in the code above is a Harness secret whose value is decoded during pipeline execution.

Variables such as project name and GitHub repository are runtime inputs. They are needed at the time of pipeline execution. When creating a new variable, you can specify its type in the UI. For more information about reference variables, go to the reference documentation on pipeline variables.

Create a software Workflow definition in IDP​

Now that our pipeline is ready to execute when a project name and a GitHub repository name are provided, let's create the UI counterpart of it in IDP. This is powered by the Backstage Software Workflow. Create a Workflow.yaml file anywhere in your Git repository. Usually, that would be the same place as your skeleton hello world code. We use the react-jsonschema-form playground to build the Workflow. Nunjucks is templating engine for the IDP Workflows.

Source

apiVersion: scaffolder.backstage.io/v1beta3
kind: Workflow
metadata:
  name: onboard-services
  title: Create and Onboard a new react app
  description: A Workflow to create and onboard a new react app
  tags:
    - nextjs
    - react
    - javascript
spec:
  owner: debabrata.panigrahi@harness.io
  type: service
  parameters:
    - title: Next.js app details
      required:
        - project_name
        - github_repo
        - github_org
      properties:
        project_name:
          title: Name of your new app
          type: string
          description: Unique name of the app
        github_repo:
          title: Name of the GitHub repository
          type: string
          description: This will be the name of Repository on Github
        github_org:
          title: Name of the GitHub Organisation
          type: string
          description: This will be the name of Organisation on Github
        github_token:
          title: GitHub PAT
          type: string
          ui:widget: password
        token:
          title: Harness Token
          type: string
          ui:widget: password
          ui:field: HarnessAuthToken
  steps:
    - id: trigger
      name: Creating your react app
      action: trigger:harness-custom-pipeline
      input:
        url: "YOUR PIPELINE URL"
        inputset:
          project_name: ${{ parameters.project_name }}
          github_repo: ${{ parameters.github_repo }}
          github_org: ${{ parameters.github_org }}
          github_token: ${{ parameters.github_token }}
        apikey: ${{ parameters.token }}
    # The final step is to register our new component in the catalog.
  output:
    links:
      - title: Pipeline Details
        url: ${{ steps.trigger.output.PipelineUrl }}

This YAML code is governed by Backstage. You can change the name and description of the software Workflow. The Workflow has the following parts:

  1. Input from the user
  2. Execution of pipeline

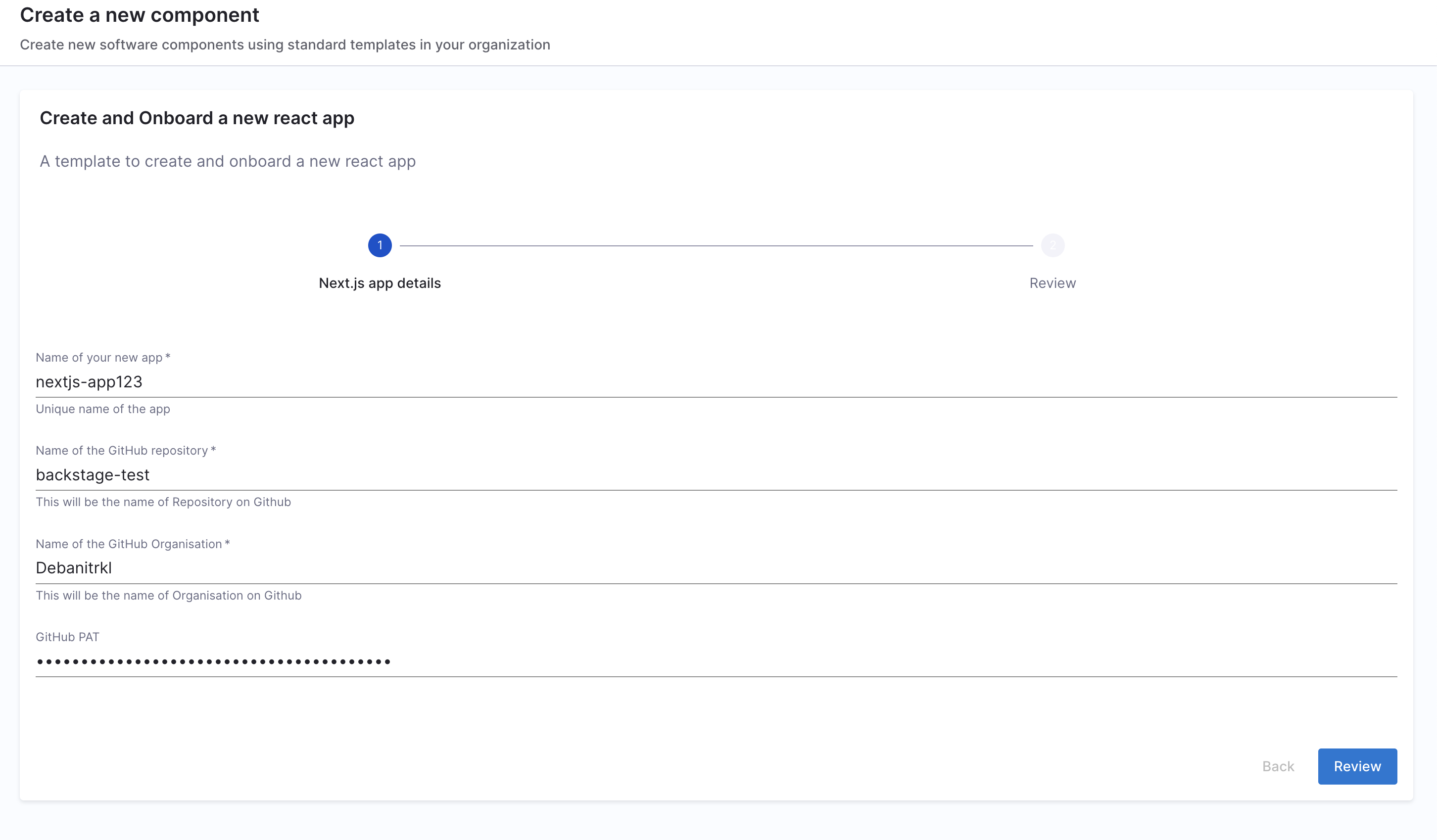

Let's take a look at the inputs that the Workflow expects from a developer. The inputs are written in the spec.parameters field. It has two parts, but you can combine them. The keys in properties are the unique IDs of fields (for example, github_repo and project_name). If you recall, they are the pipeline variables that we set as runtime inputs earlier. This is what we want the developer to enter when creating their new application.

The YAML definition includes fields such as cloud provider and database choice. They are for demonstration purposes only and are not used in this tutorial.

Adding the owner​

By default the owner is of type Group which is same as the User Group in Harness. In case the owner is a user you have to mention it as user:default/debabrata.panigrahi, and it should only contain the username not the complete email ID.

Authenticate the request​

Once you have written all the inputs that the Workflow requires, you must add the following YAML snippet under spec.parameters.properties.

token:
  title: Harness Token
  type: string
  ui:widget: password
  ui:field: HarnessAuthToken
info

The token property we use to fetch Harness Auth Token is hidden on the Review Step using ui:widget: password, but for this to work the token property needs to be mentioned under the first page in-case you have multiple pages.

# example workflow.yaml
...
parameters:
  - title: <PAGE-1 TITLE>
    properties:
      property-1:
        title: title-1
        type: string
      property-2:
        title: title-2
    token:
      title: Harness Token
      type: string
      ui:widget: password
      ui:field: HarnessAuthToken
  - title: <PAGE-2 TITLE>
    properties:
      property-1:
        title: title-1
        type: string
      property-2:
        title: title-2
  - title: <PAGE-n TITLE>
...

Also the token input is used as a parameter under steps as apikey

  steps:
    - id: trigger
      name: ...
      action: trigger:harness-custom-pipeline
      input:
        url: ...
        inputset:
          key: value
          ...
        apikey: ${{ parameters.token }}

This is a custom component we created to authenticate the call to execute the pipeline on the basis of the logged-in user's credentials.

Action to trigger the pipeline​

info

The Workflow actions currently supports only custom stage and codebase disabled CI stage with Run step, also all input, except for pipeline input as variables, must be of fixed value.

The spec.steps field contains only one action, and that is to trigger a Harness pipeline. Update the url and replace it with the URL of your service onboarding pipeline. Also, ensure that the inputset is correct, and it contains all the runtime input variables that the pipeline needs.

Register the Workflow​

Use the URL to the workflow.yaml created above and register it by using the same process for registering a new software component.

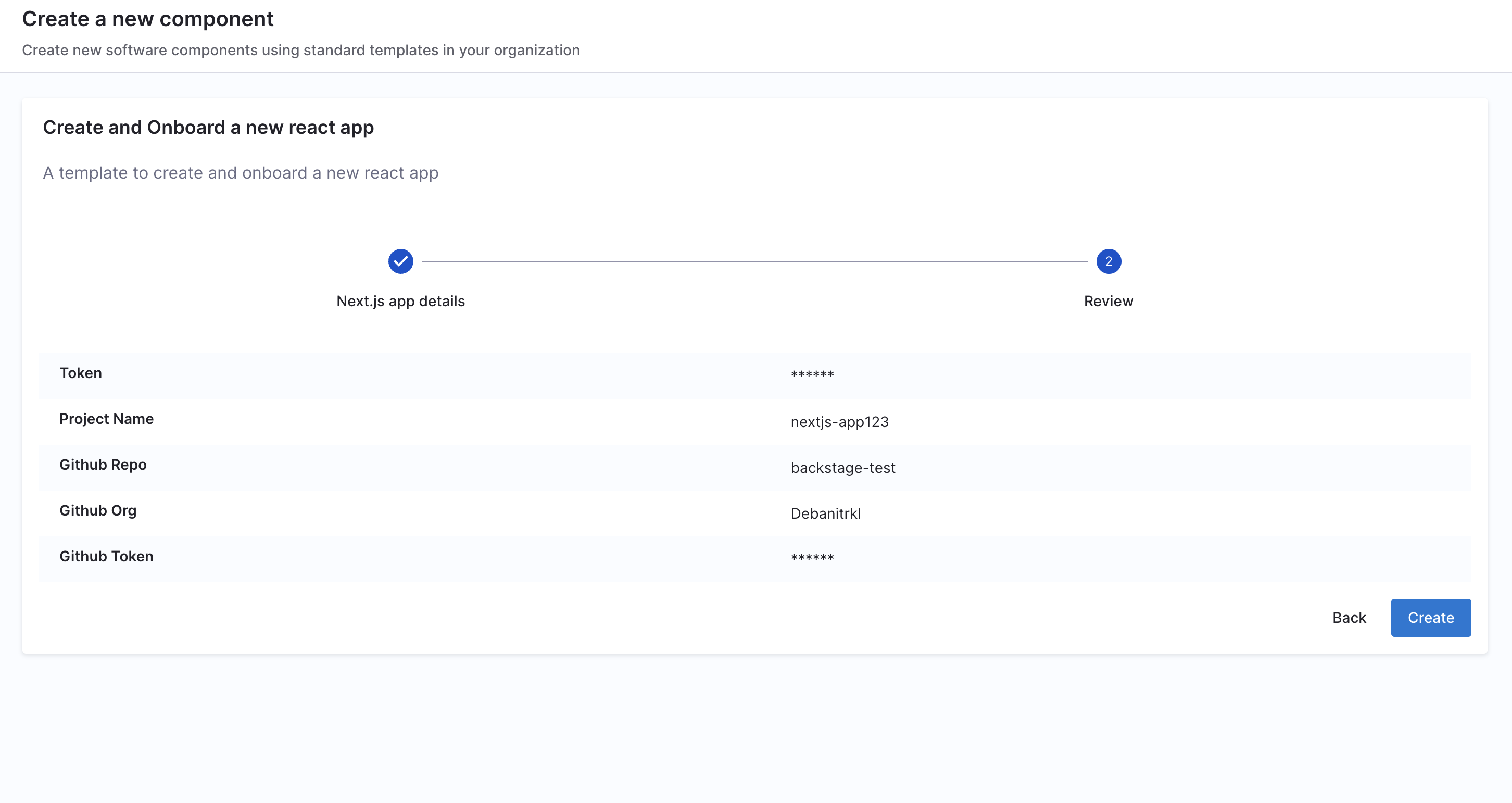

Now navigate to the Create page in IDP. You will see the newly created Workflow appear. Try it out!

Unregister/Delete Workflow​

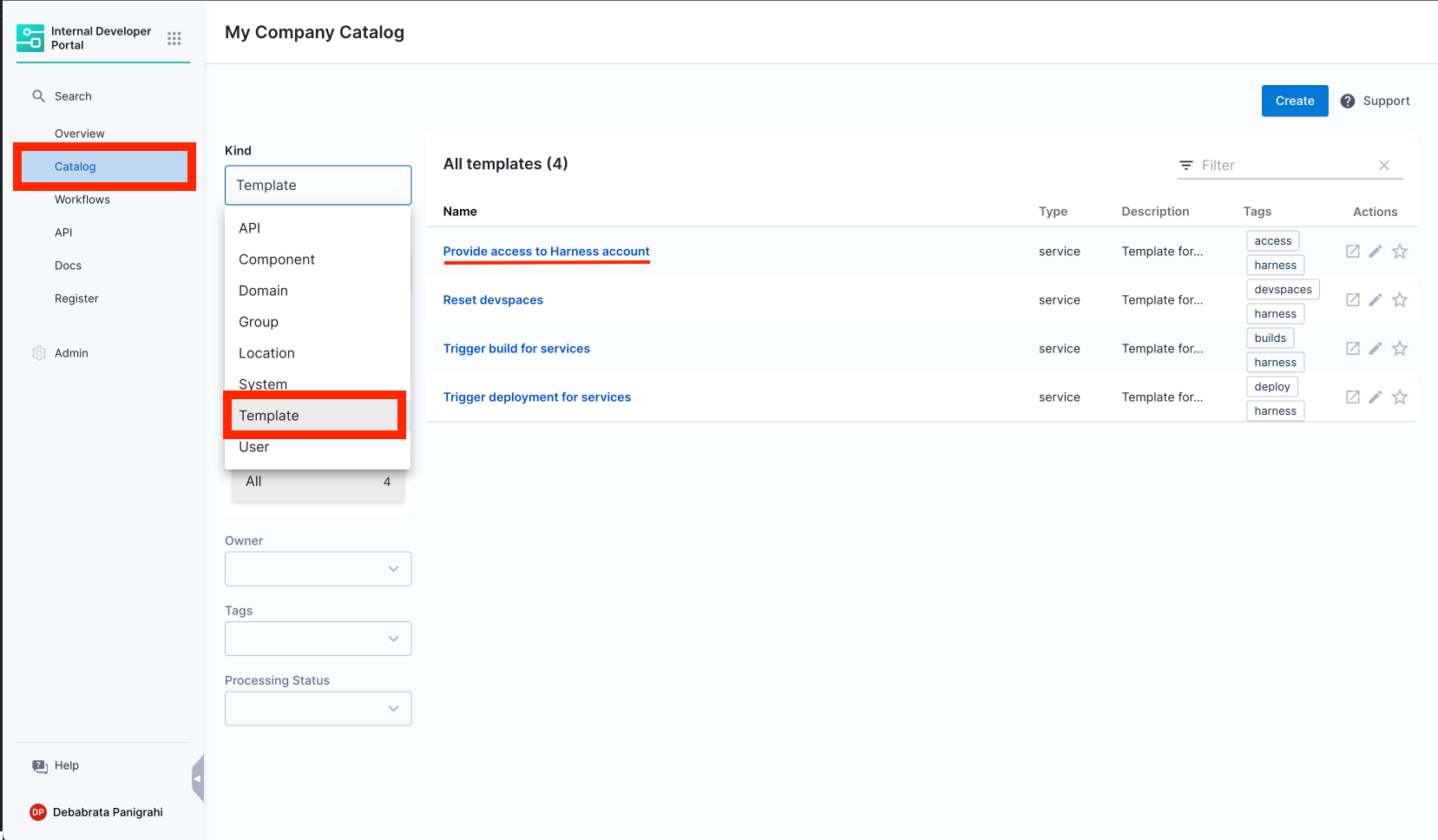

  1. Navigate to the Catalog page, and select Template under Kind.

  1. Select the Workflow Name you want to Unregister.

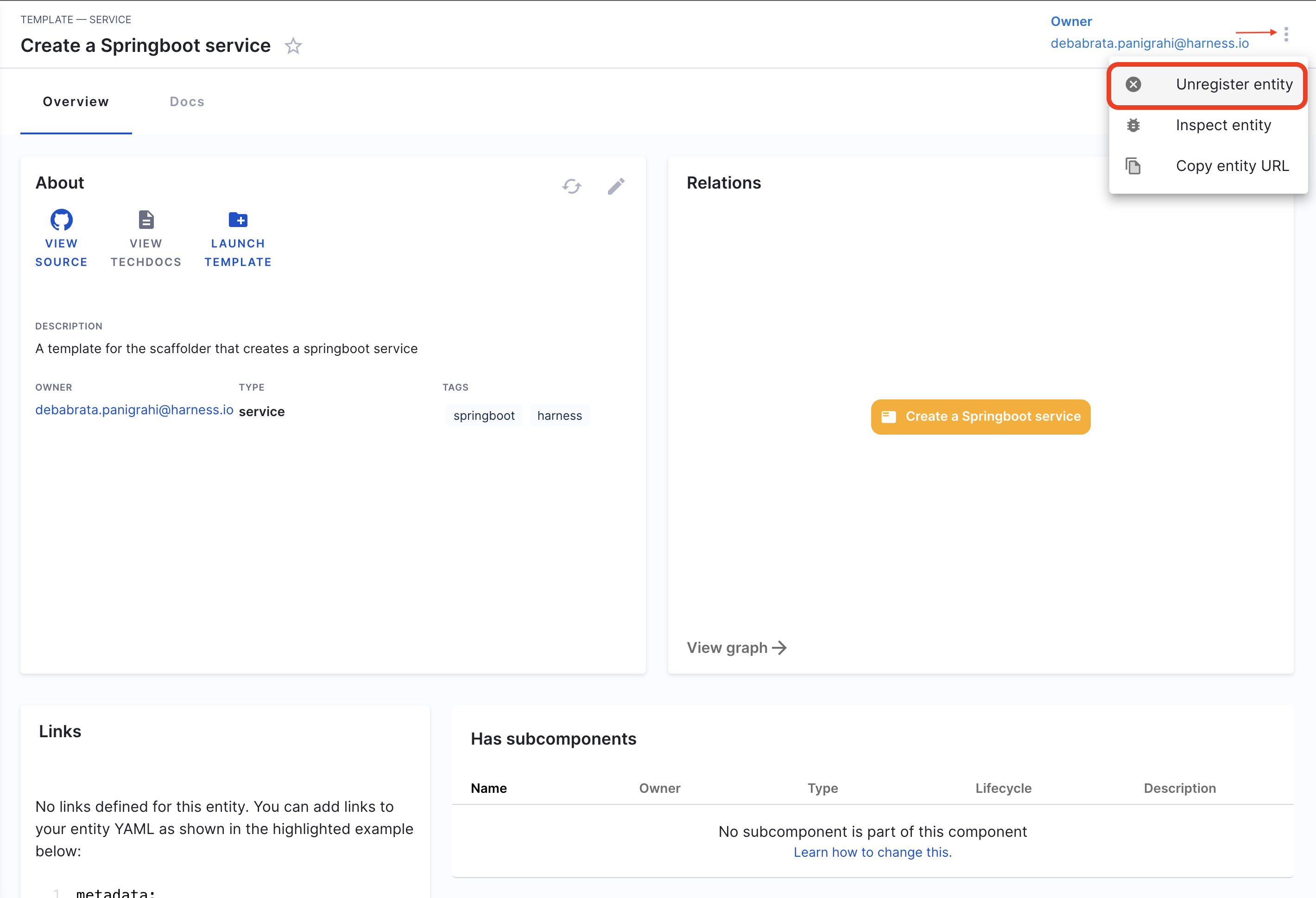

  2. Now on the Workflow overview page, click on the 3 dots on top right corner and select Unregister Entity.

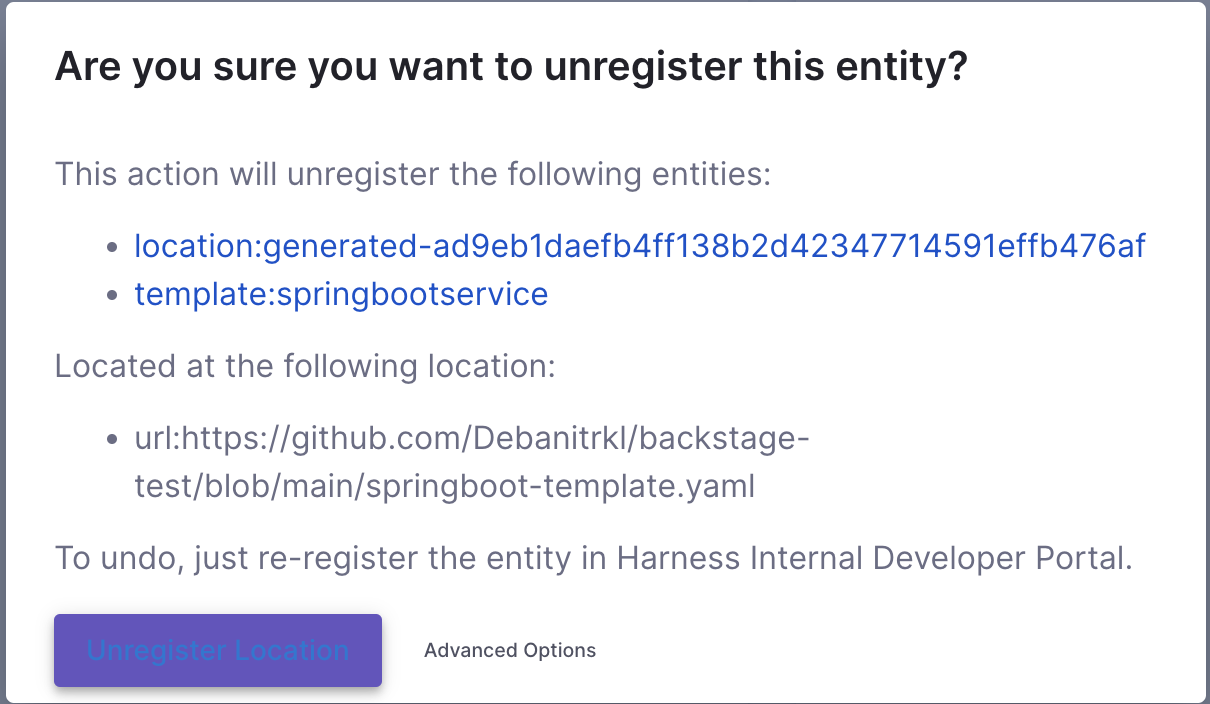

  1. Now on the Dialog box select Unregister Location.

  1. This will delete the Workflow.
